Unicharm Hygienic Industries Factory (Phase 1)

Home / Projects / Unicharm - Industries Factory

Unicharm Middle East and North Africa Hygienic Industries
EHAF Consultants
Type of contractor
Sub contractor
Main contractor

Description of project:

The project consists of a sanitary products plant located in the Al Tajamouat Industrial Park, in the city of 10th of Ramadan, with a built up area of 43,000 m².

Scope of Works :

Supply and installation testing and commissioning of HVAC system Described as following:
-Installation of 2 water cooled chillers 650 TR each

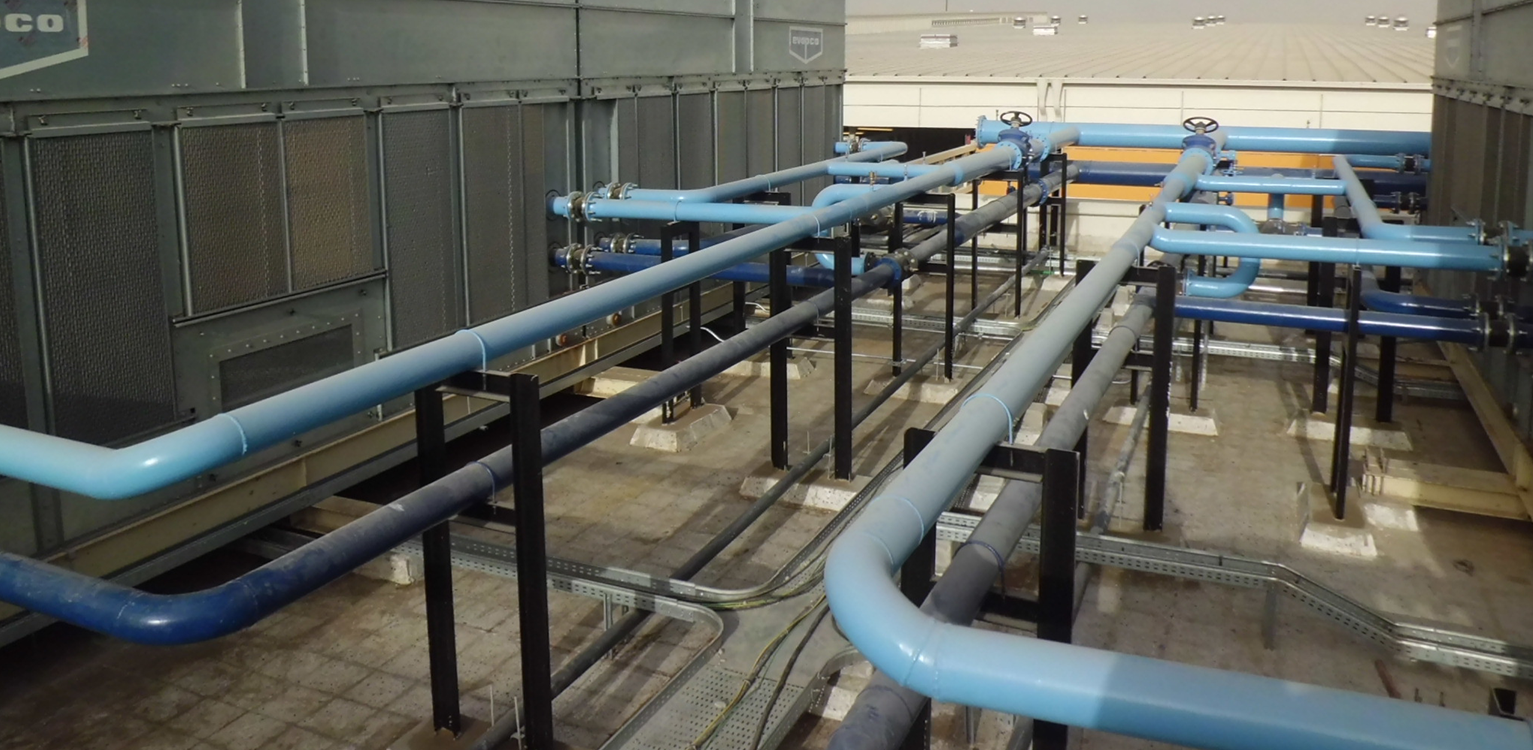

-Installation of 4 cooling towers

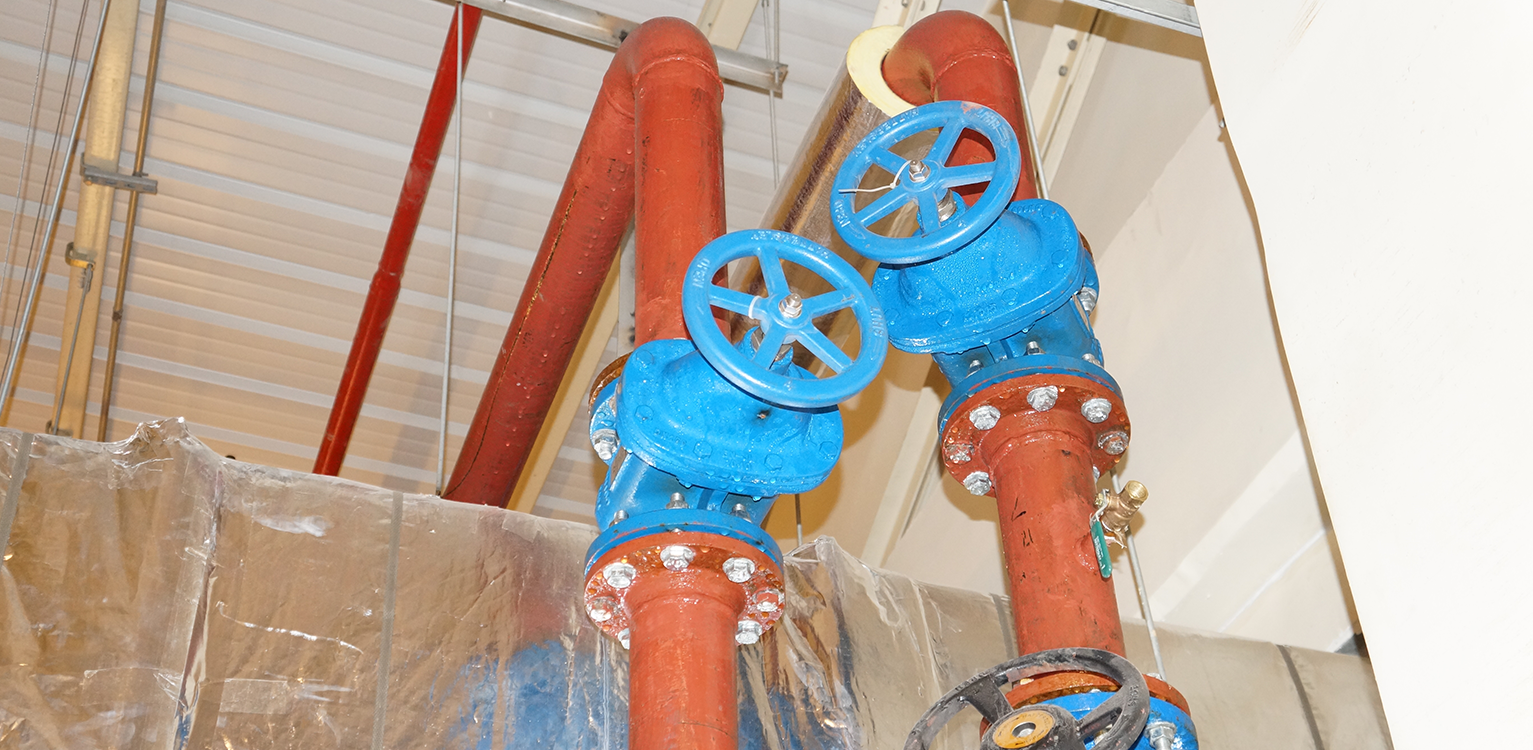

-Supply and installation of chilled water piping system over 1000 m different sizes from 16" to 1.5"

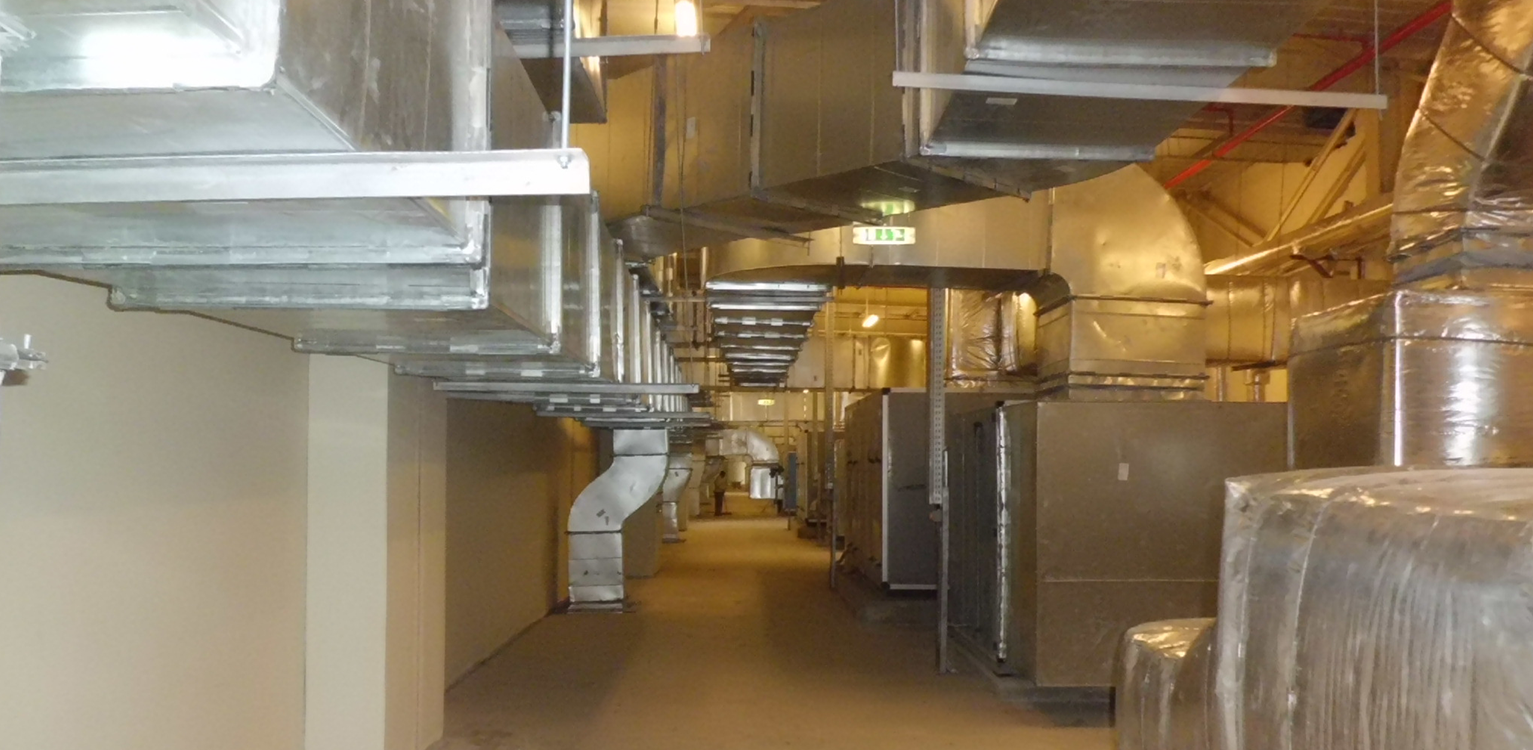

-supply and installation of approximately 100 ton sheet metal duct

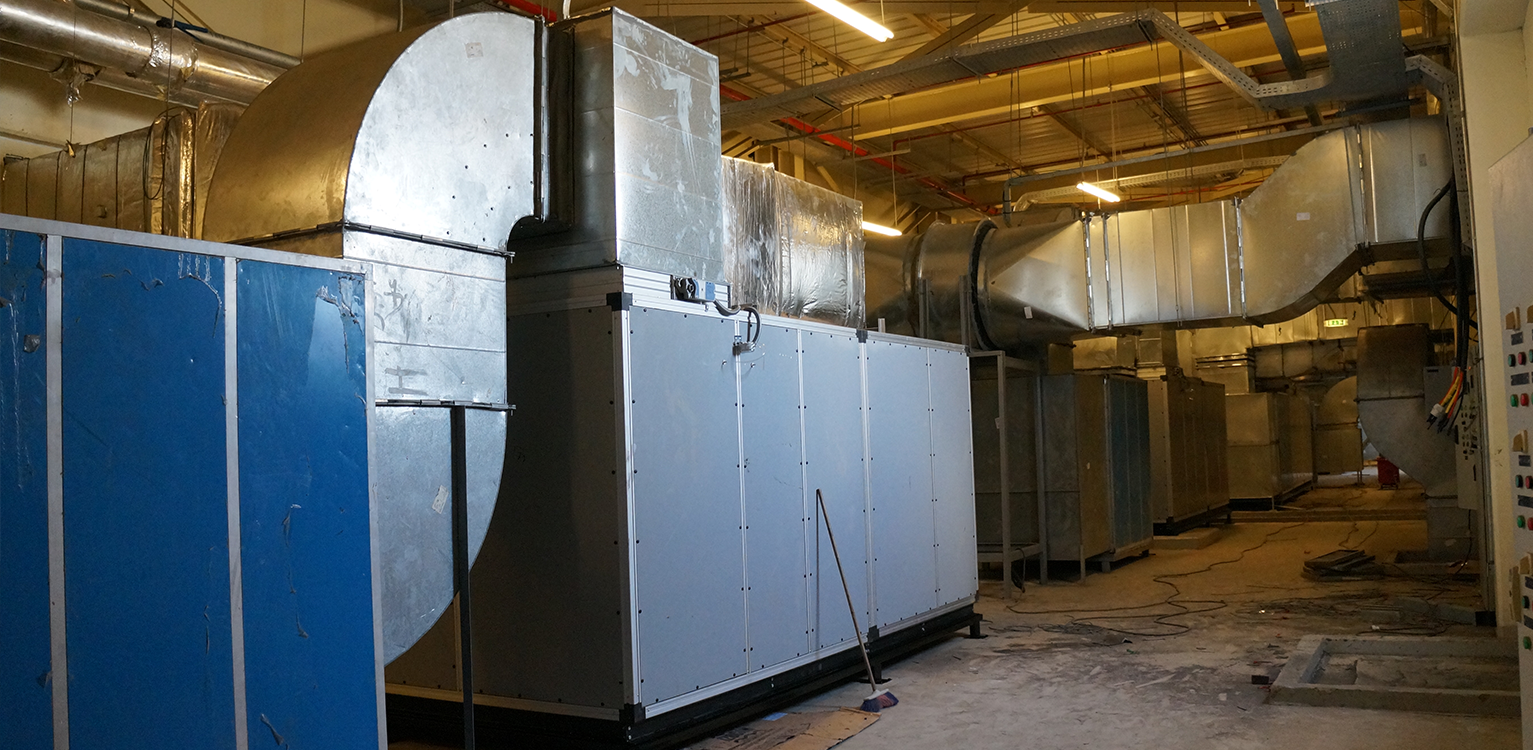

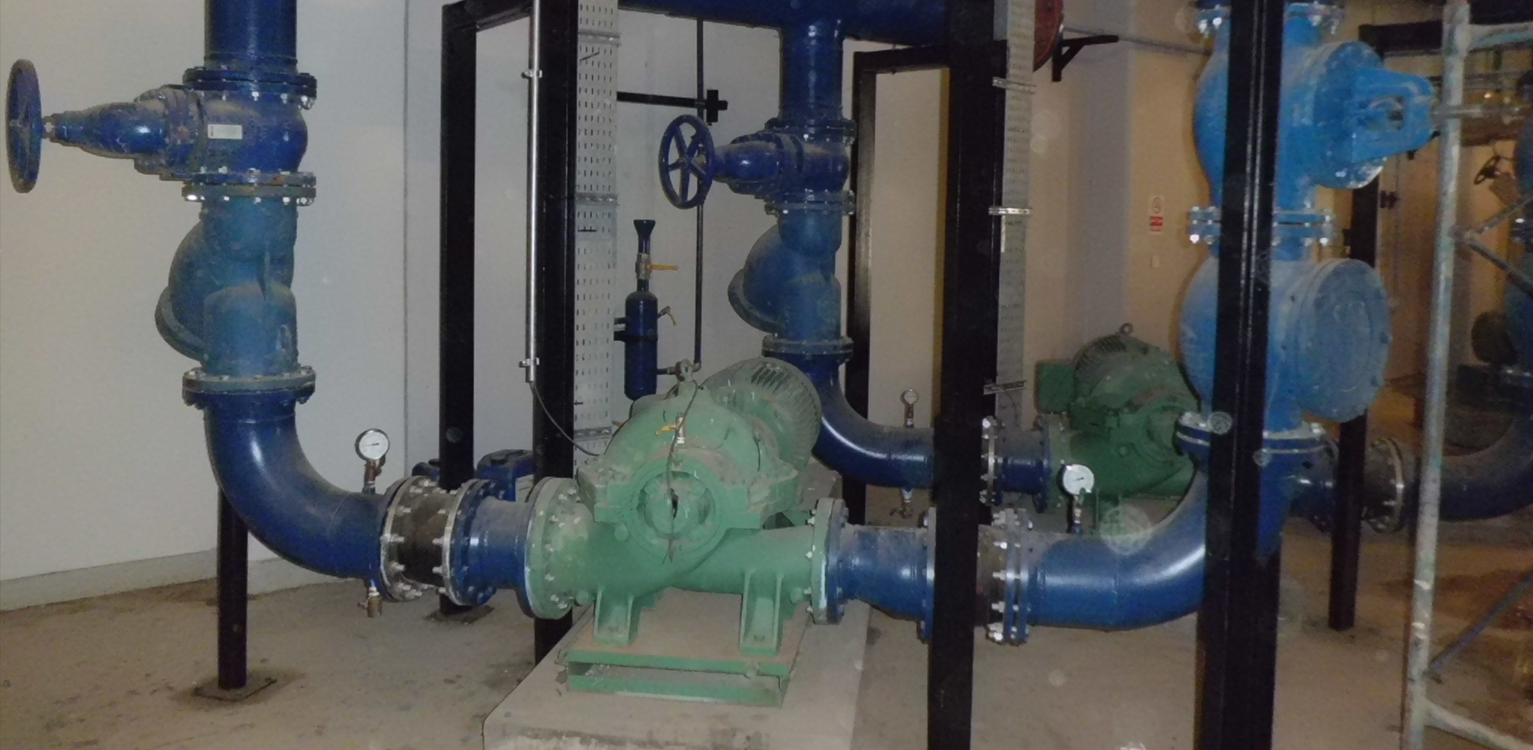

-Installation of the other equipment required for the system such as Ch. water pumps, condensate pumps, AHU,FCU ,fresh air and exhaust air fans

Contract Date: 2011

Contract Value: L.E 8,640,000

Status: Handed over
